Approval Flows and Change Requests

Overview

Change control is critical to the success of any ongoing project and especially fundamental to software development. It is used to ensure that changes are introduced in a controlled and coordinated manner, reducing the risk of unnecessary changes and ensuring minimal disruption to services.

Split supports change control on segment and feature flags objects. If change control is enabled in your environment, then API calls to modify these objects directly without creating a change request returns a 403 stating that Approvals are required, for example:

{
   "code": 403,
   "message": "Approvals are required. orgId=id-org-UUID envId=id-envronment-UUID",
   "details": "",
   "transactionId": "22ugt6f5igp"
}

Prerequisites

Install cURL. This application is a free HTTP API client that we will use to make API calls in this document. It should be installed already if you are on a Mac or a Linux machine. If you are more comfortable with other ways to call HTTP endpoints or other HTTP clients, you should be able to follow along. It is a command line tool, so you need to have basic familiarity with the CMD.exe command prompt on Windows or Terminal emulators on Mac or Linux machines.
You need to create an Admin API key. You can create this by navigating to Admin settings and then API keys. Click the Action button and from the menu list, select Create API key in the top right.

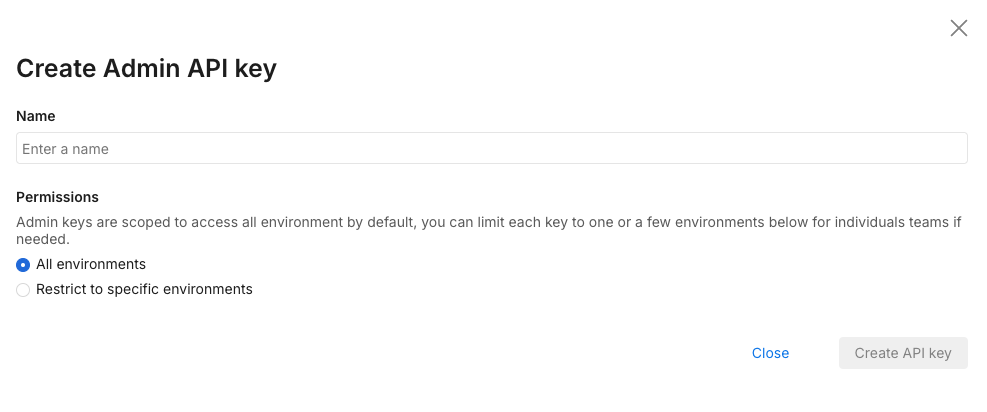

The following page displays:

Select Admin as this tutorial’s API key needs to be for the Admin API. Give it a name and optionally restrict it to environments and projects that you are using the API key for.

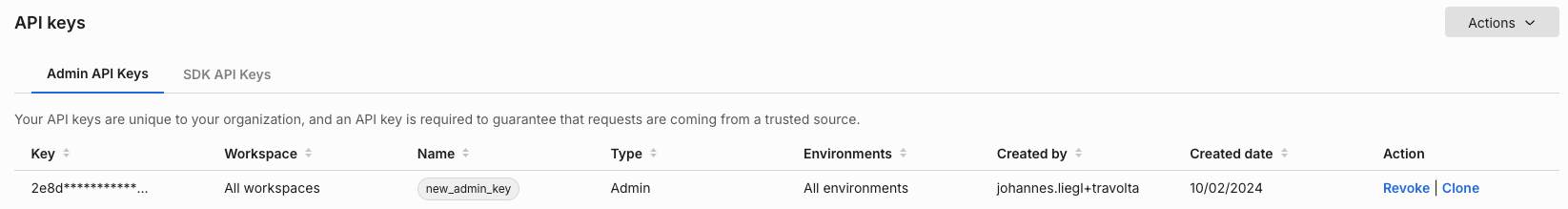

Once you click Create, an API key is available for use:

tip

This page uses $orgId and $apiKey to replace the actual API key and account ID that we gathered previously. Replace these with what you have copied as the account ID and API key.

To use this key for approving change requests, you need to first set this API Key as an approver by following these steps:

In Admin settings, click Projects.
Find the project in which you want to set the API key as an approver. Click the View link in the Actions column.
Find the environment in which you want to set the key as an approver. Click the Edit link in the Actions column.

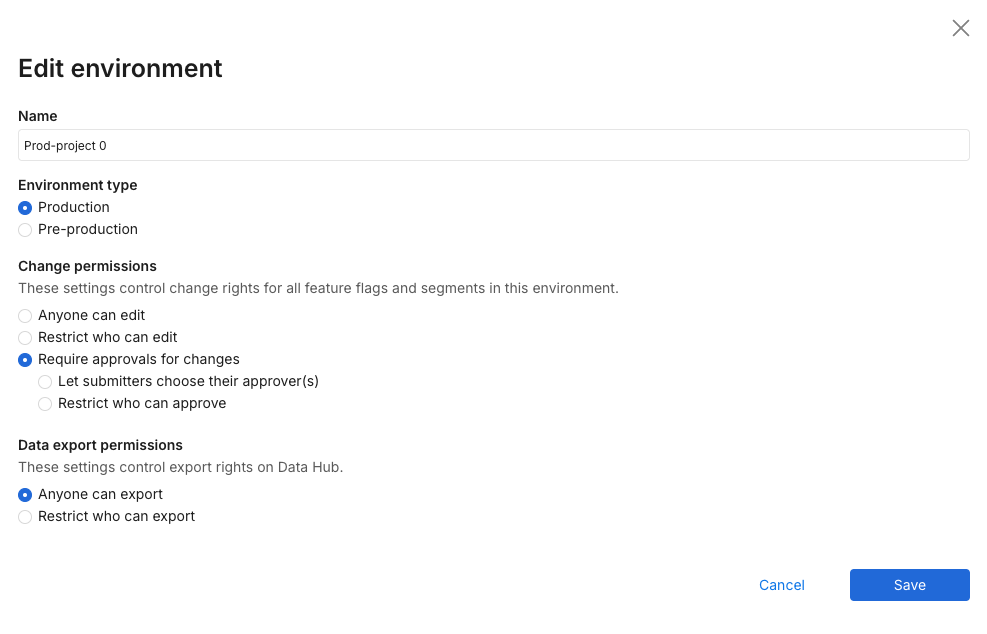

On the Edit Environment page, select Require approval for changes.

If you select:
- Let submitters choose their own approvers, the API cannot be used to approve change requests, but it can still create them and set user account email addresses as approvers.
- Restrict who can approve, you must explicitly select the API key as an approver.
Click Save. The next screen shows that the environment requires approvals.

For both of the following sections, we also need the project ID and environment ID. Those can be collected from the Split user interface or from API calls. Using our API key we can call to the Workspaces endpoint (used for projects) as follows:

curl --location --request GET 'https://api.split.io/internal/api/v2/workspaces' \
--header 'Content-Type: application/json' \
--header 'Authorization: Bearer $apiKey‘

To retrieve our list of projects and their IDs:

{
"objects": [
       {
          "name": "Default",
          "type": "workspace",
          "id": "id-defaultProject-UUID",
           "requiresTitleAndComments": false
       },
………
   ],
    "offset": 0,
    "limit": 10,
    "totalCount": 3
}

Then, using that project ID, we can get the environments:

curl --location --request GET 'https://api.split.io/internal/api/v2/environments/ws/id-defaultProject-UUID' \
--header 'Content-Type: application/json' \
--header 'Authorization: Bearer $apiKey‘

This returns the following data:

[
   {
      "name": "Prod-Default",
      "id": "id-prodEnv-UUID",
      "production": true
   },
   {
       "name": "Staging-Default",
       "id": "id-stgEnv-UUID",
       "production": false
   }
]

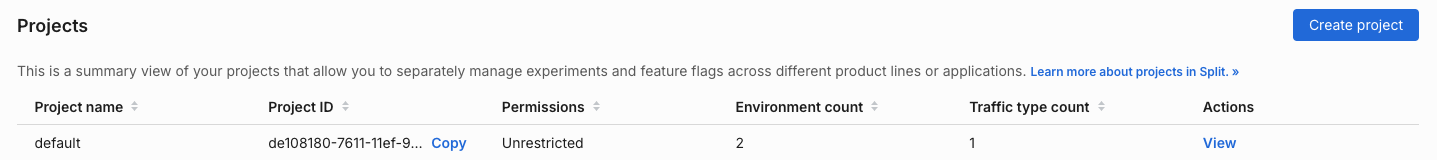

To do this using the user interface, go to Admin settings and select Projects to see the project names and IDs.

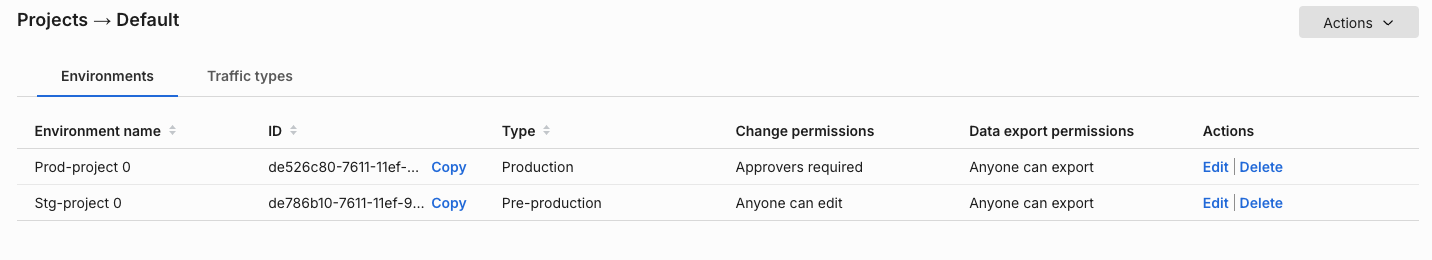

Click the View link in the Actions column to see a project's environment names and IDs.

Change requests with segments

info

Some of the actions listed below (such as updating segment owners and tags) cannot be done with the Admin API.

Requires a change request	Does not require a change request
Adding keys to a segment	Creating a segment in a project
Removing keys from a segment	Adding an initial empty segment definition to an environment
	Updating segment tags
	Updating segment owners
	Updating segment descriptions
	Removing an empty segment definition from an environment
	Deleting a segment

Creating or deleting segment keys via the Admin API both require a HTTP POST request. All change requests go to the changeRequest endpoint. Before submitting the change request, you must gather the data required.

Segment Operation Payload

Property	Description
`segment.name`	The name of the segment being updated.
`segment.keys`	The segment keys to use as part of the operation.
`operationType`	The type of operation to perform (see operationType Values).
`title`	The title of the change request.
`comment`	Any change request comments.
`approvers`	Email address(es) of the approver(s). Cannot be the API key. See notes below.

`operationType` Values

Value	Description
`CREATE`	Add the keys to the segment.
`ARCHIVE`	Remove the keys from the segment.

Approvers Behavior by Environment Setting

Environment Setting	Rule
Let submitters choose approvers	Provide email address(es) of desired approver(s).
Restrict who can approve	Leave the `approvers` array empty. The environment defines approvers.

In the following scenario, we plan on adding the segments San Francisco and Clark's Mountain to our segment beta_accounts. This object will look like the following:

{
  "segment":{"name":"beta_accounts", "keys":["San Francisco","Clark's Mountain"]},
  "operationType":"CREATE",
  "title":"Adding new beta accounts",
  "comment":"Processed via Admin API",
  "approvers":[]
}

Then, the call to create the change request will look like the following:

curl --location --request POST 'https://api.split.io/internal/api/v2/changeRequests/ws/id-defaultProject-UUID/environments/id-prodEnv-UUID' \
--header 'Content-Type: application/json' \
--header 'Authorization: Bearer $apiKey' \
--data-raw '{
   "segment":{"name":"beta_accounts", "keys":["San Francisco","Clark'\''s Mountain"]},
   "operationType":"CREATE",
   "title":"Adding new beta accounts",
   "comment":"Processed via Admin API",
   "approvers":[]
}
'

The result shows the successful creation of the change request:

{
   "split": null,
   "segment": {
     "name": "beta_accounts",
     "keys": [
       "San Francisco",
       "Clark's Mountain"
       ]
   },
    "id": "id-cr-UUID",
    "status": "REQUESTED",
    "title": "Adding new beta accounts",
    "comment": null,
    "workspace": {
       "id": "id-defaultProject-UUID",
       "type": "workspace"
   },
    "approvers": [
      "admin-api-key"
   ],
    "operationType": "CREATE",
    "comments": [
       {
         "comment": "Processed via Admin API",
         "user": "admin-api-key",
         "role": "SUBMITTER",
         "timestamp": 1646219795355
       }
   ],
    "rolloutStatus": null,
    "rolloutStatusTimestamp": null
}

To confirm this change request, we can call the GET request on the changeRequests endpoint:

curl --location --request GET 'https://api.split.io/internal/api/v2/changeRequests' \
--header 'Authorization: Bearer $apiKey’‘

We then see the REQUESTED status change request:

{
  "data": [
     {
       "split": null,
       "segment": {
          "name": "beta_accounts",
          "keys": [
             "San Francisco",
             "Clark's Mountain"
            ]
           },
          "id": "id-cr-UUID",
          "status": "REQUESTED",
          "title": "Adding new beta accounts",
          "comment": null,
          "workspace": {
            "id": "id-defaultProject-UUID",
            "type": "workspace"
          },
         "approvers": [
           "admin-api-key"
           ],
         "operationType": "CREATE",
         "comments": [
           {
             "comment": "Processed via Admin API",
             "user": "admin-api-key",
             "role": "SUBMITTER",
             "timestamp": 1646219795355
            }
          ],
        "rolloutStatus": null,
        "rolloutStatusTimestamp": null
       }
   ],
    "nextMarker": null,
    "previousMarker": null,
    "limit": 20,
    "count": 1
}

The GET supports pagination using nextMarker and previousMarker as optional query parameters. It also is possible to also get APPROVED, REJECTED, WITHDRAWN, and PUBLISHED change requests using the status query parameter.

In the Split user interface, we can also confirm the pending change request exists when you see the message This segment has pending change. View the change.

At this point, if the API key is not set as an approver, the only other thing we can do with it is withdraw the change request.

curl --location --request PUT 'https://api.split.io/internal/api/v2/changeRequests/id-cr-UUID' \
--header 'Content-Type: application/json' \
--header 'Authorization: Bearer $apiKey‘ \
--data-raw '{
   "status":"WITHDRAWN",
   "comment":"CR withdrawn via Admin API"
}
'

Now if we call the GET request like we did previously, you won’t see the change request.

curl --location --request GET 'https://api.split.io/internal/api/v2/changeRequests' \
--header 'Authorization: Bearer $apiKey‘

This call returns the following:

​​{
  "data": [],
   "nextMarker": null,
   "previousMarker": null,
   "limit": 20,
   "count": 0
}

To see a withdrawn change request, use this endpoint to see a single change request. To do this, we need to put the change request ID into the endpoint URL:

curl --location --request GET 'https://api.split.io/internal/api/v2/changeRequests/id-cr-UUID’ \
--header 'Authorization: Bearer $apiKey’

This returns the change request showing the WITHDRAWN status. Notice the comments objects at the bottom also showing the history of comments as well. In the case of change request management, it is helpful to have meaningful comments.

{
  "split": null,
  "segment": {
    "name": "beta_accounts",
    "keys": [
      "San Francisco",
      "Clark's Mountain"
     ]
   },
  "id": "id-cr-UUID",
  "status": "WITHDRAWN",
  "title": "Adding new beta accounts",
  "comment": null,
  "workspace": {
    "id": "id-",
    "type": "workspace"
   },
  "approvers": [
    "admin-api-key"
  ],
  "operationType": "CREATE",
  "comments": [
    {
      "comment": "Processed via Admin API",
      "user": "admin-api-key",
      "role": "SUBMITTER",
      "timestamp": 1646219795355
     },
     {
      "comment": "CR withdrawn via Admin API",
      "user": "admin-api-key",
      "role": "SUBMITTER",
      "timestamp": 1646221275904
     }
   ],
  "rolloutStatus": null,
  "rolloutStatusTimestamp": null
}

Another way to see this is to explicitly call to list all WITHDRAWN change requests.

curl --location --request GET 'https://api.split.io/internal/api/v2/changeRequests?status=WITHDRAWN' \
--header 'Authorization: Bearer $apiKey‘

If the Admin API is set as an approver, you can approve the change request by setting the status to APPROVED instead of WITHDRAWN as shown below:

curl --location --request PUT 'https://api.split.io/internal/api/v2/changeRequests/id-cr-UUID' \
--header 'Content-Type: application/json' \
--header 'Authorization: Bearer $apiKey‘ \
--data-raw '{
  "status":"APPROVED",
  "comment":"CR approved via Admin API"
}
'

The status changes to PUBLISHED if the change request is successfully approved.

{
  "split": null,
  "segment": {
    "name": "beta_accounts",
    "keys": [
      "San Francisco",
      "Clark's Mountain"
      ]
   },
   "id": "id-cr-UUID",
   "status": "PUBLISHED",
   "title": "Adding new beta accounts",
   "comment": null,
 …..
}

It is important to note that you cannot use the same API key to submit and approve the same request. In that scenario you would need two API keys. One API key to submit requests and the other set up as an approver.

Change requests with feature flags

Change requests with feature flags have a few more options than change requests with segments.

info

Some of the actions listed below (such as updating feature flag owners and tags) cannot be done with the Admin API.

Requires a change request	Does not require a change request
Changing a feature flag definition in an environment	Creating a new feature flag in a project
Adding a feature flag definition to an environment	Updating feature flag tags
Removing a feature flag definition from an environment	Updating feature flag owners
Killing or reactivating a feature flag	Updating a feature flag description
	Updating a feature flag rollout status
	Deleting a feature flag with no targeting rules

The same changeRequest endpoint is used for feature flag change requests. However, the object sent in the body of the request is different.

We need to gather the following information to build the object to send:

Feature Flag Operation Payload

Property	Description
`split`	The feature flag definition object. Use a GET call on the feature flags endpoint to retrieve the existing definition.
	For `KILL`, `RESTORE`, or `ARCHIVE` operations, only `split.name` is required.
	For `UPDATE` and `CREATE` operations, the full feature flag definition is required.
`operationType`	The type of operation to perform (see operationType Values).
`title`	The title of the change request.
`comment`	Any change request comments.
`rolloutStatus.id`	The rollout status ID. Not required for `KILL` operations.
`approvers`	Email address(es) of the approver(s). Cannot be the API key. See Approvers Behavior.

`operationType` Values

Value	Description
`KILL`	Kill the feature flag, resulting in only the default treatment being served.
`RESTORE`	Restore a killed feature flag.
`UPDATE`	Update the treatment definition of the feature flag.
`CREATE`	Create a new feature flag.
`ARCHIVE`	Remove the feature flag definition from the environment.

Approvers Behavior by Environment Setting

Environment Setting	Rule
Let submitters choose approvers	Provide email address(es) of desired approver(s).
Restrict who can approve	Leave the `approvers` array empty. The environment defines approvers.

For this exercise, you are going to take an existing feature flag definition and create a new, different feature flag called copy_of_onboarding_flow with the rollout percentage changed from 50/50 to 80/20 on/off.

The feature flag we are using is called new_onboarding_flow.

In the Split user interface, the default rule shows a 50/50 rollout:

The first thing we need to do is to create the project level feature flag in order to add a feature flag definition to our environment. This call creates the new feature flag with a simple description.

curl --location --request POST 'https://api.split.io/internal/api/v2/splits/ws/557c90d0-7c44-11ec-97df-eafbc0e90433/trafficTypes/user/' \
--header 'Content-Type: application/json' \
--header 'Authorization: Bearer $apiKey' \
--data-raw '{
"name": "copy_of_onboarding_flow",
"description": "New Split"
}'

You don’t need the feature flag id here so just having a successful result of the API call will be sufficient.

Rather than trying to create the feature flag definition object we want from scratch, it’s much easier to retrieve the existing feature flag object and make the necessary modifications.

As such, we first get the feature flag definition.

curl --location --request GET 'https://api.split.io/internal/api/v2/splits/ws/id-defaultProject-UUID/new_onboarding_flow/environments/id-prodEnv-UUID' \
--header 'Content-Type: application/json' \
--header 'Authorization: Bearer $apiKey'

The returned value is the full feature flag definition with ID, name, environment, and trafficType along with the treatment definitions. However, for what you need, you can ignore that. The properties we need are the ones below that are returned.

{
…..
 "name": "new_onboarding_flow",
….
 "treatments": [
   {
    "name": "on",
    "description": ""
   },
   {
    "name": "off",
    "description": ""
    }
  ],
  "defaultTreatment": "off",
  "trafficAllocation": 100,
  "rules": [
     {
       "buckets": [
         {
           "treatment": "on",
           "size": 100
          }
        ],
        "condition": {
          "combiner": "AND",
          "matchers": [
             {

               "type": "IN_SEGMENT",
               "string": "employees"
             }
           ]
         }
       }
  ],
  "defaultRule": [
     {
       "treatment": "on",
       "size": 50
      },
      {
        "treatment": "off",
        "size": 50
       }
   ],
….
}

Property	Description
`name`	Feature flag name.
`treatments`	Name and description of treatments.
`defaultTreatment`	Name of default treatment.
`trafficAllocation`	0-100, percentage of traffic allocated to the feature flag.
`rules`	Targeting rule objects.
`defaultRule`	Default targeting rule.

Now that we have our feature flag object, we are going to change the defaultRule object to give the on treatment a size of 80 and the off treatment a size of 20. The object now looks like the following:

{
  "name": "copy_of_onboarding_flow",
  "treatments": [ {"name": "on", "description": ""}, {"name": "off", "description": ""} ],
  "defaultTreatment": "off",
  "trafficAllocation": 100,
  "rules": [
     {
      "buckets": [ {"treatment": "on", "size": 100} ],
      "condition": {
        "combiner": "AND",
         "matchers": [ {"type": "IN_SEGMENT", "string": "employees"} ]
        }
      }
   ],
  "defaultRule": [ {"treatment": "on", "size": 80}, {"treatment": "off", "size": 20} ]
}

The other piece of information that we need is the rollout status we want to use. Getting the rollout status ids can be done with this HTTP GET request.

curl --location --request GET 'https://api.split.io/internal/api/v2/rolloutStatuses?wsId=id-defaultProject-UUID' \
--header 'Authorization: Bearer $apiKey‘

This returns the rollout statuses. In our case, we are interested in the Ramping status.

[
……
 {
   "id": "id-ramping-UUID",
   "name": "Ramping",
   "description": "Splits that are turned on for a small percentage of users to make sure no performance issues or larger issues come up"
 },
 {
   "id": "id-experimenting-UUID",
   "name": "Experimenting",
   "description": "Splits that have are ramped for max power in an experiment to get results as quickly as possible"
 },
……
]

Putting this object into our change request would look like the following:

{
  "split": {
  "name": "copy_of_onboarding_flow",
  "treatments": [ {"name": "on", "description": ""}, {"name": "off", "description": ""} ],
  "defaultTreatment": "off",
  "trafficAllocation": 100,
  "rules": [
     {
      "buckets": [ {"treatment": "on", "size": 100} ],
      "condition": {
        "combiner": "AND",
        "matchers": [ {"type": "IN_SEGMENT", "string": "employees"} ]
         }
     }
   ],
   "defaultRule": [ {"treatment": "on", "size": 80}, {"treatment": "off", "size": 20} ]
  },
   "operationType": "CREATE",
   "title": "New rollout split copy",
   "comment": "Copy of the new_onboarding_split with updated rollout percentage",
   "rolloutStatus": {"id": "id-ramping-UUID"},
   "approvers": []
}

With our object created and information gathered, now you can submit this as a CREATE change request.

curl --location --request POST 'https://api.split.io/internal/api/v2/changeRequests/ws/id-defaultProject-UUID/environments/id-defaultEnvironment-UUID' \
--header 'Content-Type: application/json' \
--header 'Authorization: Bearer $apiKey‘ \
--data-raw '{
 "split": {
  "name": "copy_of_onboarding_flow",
  "treatments": [ {"name": "on", "description": ""}, {"name": "off", "description": ""} ],
  "defaultTreatment": "off",
  "trafficAllocation": 100,
  "rules": [
     {
      "buckets": [ {"treatment": "on", "size": 100} ],
      "condition": {
        "combiner": "AND",
        "matchers": [ {"type": "IN_SEGMENT", "string": "employees"} ]
      }
    }
  ],
  "defaultRule": [ {"treatment": "on", "size": 80}, {"treatment": "off", "size": 20} ]
 },
 "operationType": "CREATE",
 "title": "New rollout split copy",
 "comment": "Copy of the new_onboarding_split with updated rollout percentage",
 "rolloutStatus": {"id": "id-ramping-UUID"},
 "approvers": []
}'

The returned value shows the change request and the change request ID.

{
  "split": {
   ……
    "name": "copy_of_onboarding_flow",
……
    "killed": false,
    "treatments": [ {"name": "on", "description": ""}, {"name": "off", "description": ""} ],
    "defaultTreatment": "off",
    "trafficAllocation": 100,
    "rules": [
      {
       "buckets": [ {"treatment": "on", "size": 100} ],
       "condition": {
         "combiner": "AND",
         "matchers": [ {"type": "IN_SEGMENT", "string": "employees"} ]
       }
     }
  ],
  "defaultRule": [ {"treatment": "on", "size": 80}, {"treatment": "off", "size": 20} ],
  "openChangeRequestId": "id-cr-UUID"
 },
 "segment": null,
 "id": "id-cr-UUID",
 "status": "REQUESTED",
 "title": "New rollout split copy",
……..
 "operationType": "CREATE",
……..
 "rolloutStatusTimestamp": null
}

As with segments change requests, Split doesn’t allow for the same API key or user to approve a change request that it submitted. This can be approved either by a different Admin API Key or by a user manually.

Once approved, let’s say we want to update the feature flag to a 90/10 rollout. You need to create a change request of operationType UPDATE. The only difference between UPDATE and CREATE is that UPDATE operations act upon existing feature flag definitions.

For example, this is an UPDATE call to update the existing feature flag we created to a new rollout percentage.

curl --location --request POST 'https://api.split.io/internal/api/v2/changeRequests/ws/id-defaultProject-UUID/environments/id-defaultEnvironment-UUID' \
--header 'Content-Type: application/json' \
--header 'Authorization: Bearer $apiKey‘ \
--data-raw '{
  "split": {
    "name": "copy_of_onboarding_flow",
    "treatments": [ {"name": "on", "description": ""}, {"name": "off", "description": ""} ],
    "defaultTreatment": "off",
    "trafficAllocation": 100,
    "rules": [
      {
       "buckets": [ {"treatment": "on", "size": 100} ],
       "condition": {
         "combiner": "AND",
         "matchers": [ {"type": "IN_SEGMENT", "string": "employees"} ]
        }
      }
   ],
   "defaultRule": [ {"treatment": "on", "size": 90}, {"treatment": "off", "size": 10} ]
 },
 "operationType": "UPDATE",
 "title": "New rollout split percentage",
 "comment": "updated rollout percentage",
 "rolloutStatus": {"id": "id-ramping-UUID"},
 "approvers": []
}'

The Admin API can also be used for creating change requests to kill a feature flag. For this, you don’t need the feature flag definition, only the feature flag name.

You would kill the feature flag in the case of alerts showing performance problems, for example:

curl --location --request POST 'https://api.split.io/internal/api/v2/changeRequests/ws/id-defaultProject-UUID/environments/id-prodEnv-UUID' \
--header 'Content-Type: application/json' \
--header 'Authorization: Bearer $apiKey' \
--data-raw '{
  "split": {"name":"new_onboarding_flow"},
  "operationType":"KILL",
  "title":"Killed Split",
  "comment":"Seeing some performance problems",
  "approvers":[]
}'

The response shows the proposed feature flag definition with a split.killed property equal to true.

This same API call can be used to create a change request to RESTORE the killed feature flag to its state before the kill or ARCHIVE the feature flag to remove it from the environment entirely just by changing the operationType object property.

You’ve learned all about change requests via the Admin API in Split.

Troubleshooting

Posting a change request fails when the approver is specified

When submitting a change request while using the Admin REST API to specify the approver contact, the request fails with a 400 error.

{"code":400,"message":"Something was wrong","details":"","transactionId":"xxxxxxx"}

This error is possible if the approver option is set in the environment that has the feature flag. When approvers are pre-selected, it is not allowed to specify an approver when submitting the change request, similarly to when submitting the change from Split user interface; the approver edit box will be greyed out.

Verify if the feature flag definitions belong to an environment that has approvers set in its permissions. If so, remove the approver contact and leave the approvers array empty in the JSON payload.

For example:

"approvers":[]

Overview​

Prerequisites​

Change requests with segments​

Segment Operation Payload​

operationType Values​

Approvers Behavior by Environment Setting​

Change requests with feature flags​

Feature Flag Operation Payload​

operationType Values​

Approvers Behavior by Environment Setting​

Troubleshooting​

Posting a change request fails when the approver is specified​

See also​

Overview

Prerequisites

Change requests with segments

Segment Operation Payload

`operationType` Values

Approvers Behavior by Environment Setting

Change requests with feature flags

Feature Flag Operation Payload

`operationType` Values

Approvers Behavior by Environment Setting

Troubleshooting

Posting a change request fails when the approver is specified

See also
